Next Level UV DTF Printing Hacks

An Introduction to UV DTF Printing

UV DTF printing involves using a specialized UV printer to print designs directly onto a thin plastic film, rather than onto the final substrate. The main components of the UV DTF process are[1]:

• UV-Curable Inks: Special inks that cure and dry instantly when exposed to UV light. This allows for fast printing and immediate handling of prints.
• DTF Film: Specially coated plastic films like polyester or PET that serve as the printing substrate.
• UV Printer: A specialized flatbed or roll-to-roll UV printer with UV LED lamps for curing the printed inks.

• Laminator: Used to apply a protective laminate layer over the printed film.

Once the design is printed onto the DTF film, it can be transferred onto a variety of rigid materials like glass, metal, wood, acrylic etc. by simply peeling off the top layer. This enables printing on uneven, curved or textured surfaces that cannot be directly printed on using a UV printer.

Compared to direct UV printing, UV DTF provides greater versatility, ability to print on irregular surfaces, soft signage capabilities and higher productivity[2]. It eliminates the need for pretreatments or jigs for holding objects. The transfer process also minimizes risk of ink damage to sensitive surfaces.

Key Benefits of UV DTF Printing

There are several advantages that make UV DTF printing a preferred choice over other digital printing methods[3]:

• High Print Quality: Photorealistic prints with exceptional clarity, vibrancy and accuracy.
• Durability: UV inks provide scratch, fade and water resistance for long-lasting prints.
• Customization: Ability to print customized designs, images and textures for prototypes, packaging, labels and more.

• Versatility: Can print on a wide range of materials like glass, metals, wood, acrylic, leather, ceramics, textiles etc.
• Efficiency: Faster print and production speeds compared to screen printing or pad printing.
• Profitability: Cost-effective short-run printing without plates or screens.

• Sustainability: UV inks have low VOC emissions and require no pretreatments or transfer papers.

Step-by-Step Process of UV DTF Printing

Successfully mastering UV DTF printing requires understanding the complete workflow from start to finish. Here is an overview of the key steps involved[4]:

1. Design and File Preparation

• Create designs in software like Adobe Illustrator, Photoshop, CorelDraw etc.
• Set color mode to CMYK for accurate color reproduction.
• Export or save files as print-ready PDF, TIFF, PNG or JPEG formats.

• Perform color separation for multi-layered designs.
• Include bleed area and crop marks for proper print alignment.

2. Printer and Ink Preparation

• Select suitable UV DTF inks and load ink reservoirs. Prime printheads.
• Set up printer profiles for film type and inks being used.
• Clean printheads, sensors and UV lamps for optimal performance.
• Calibrate printer for color consistency and accuracy.

3. Film Printing

• Load DTF film roll or sheets and adjust print settings.
• Print white ink first to create an opaque base if printing on transparent or colored films.
• Print color layers as per design. The order should be white, colors, adhesive primer, clear coat.
• Use high-resolution mode for photographic prints.
• Allow for proper curing and drying time between print passes.

4. Laminating

• Clean printed surface to remove dust particles.
• Laminate over print using cold UV DTF laminator.
• Use gloss, matte or textured laminates as per application needs.
• Avoid air bubbles and wrinkles during lamination.

5. Transfer Process

• Cut out printed designs from DTF film.
• Remove liner and position print on substrate.
• Rub firmly with squeegee or burnishing tool to transfer print.

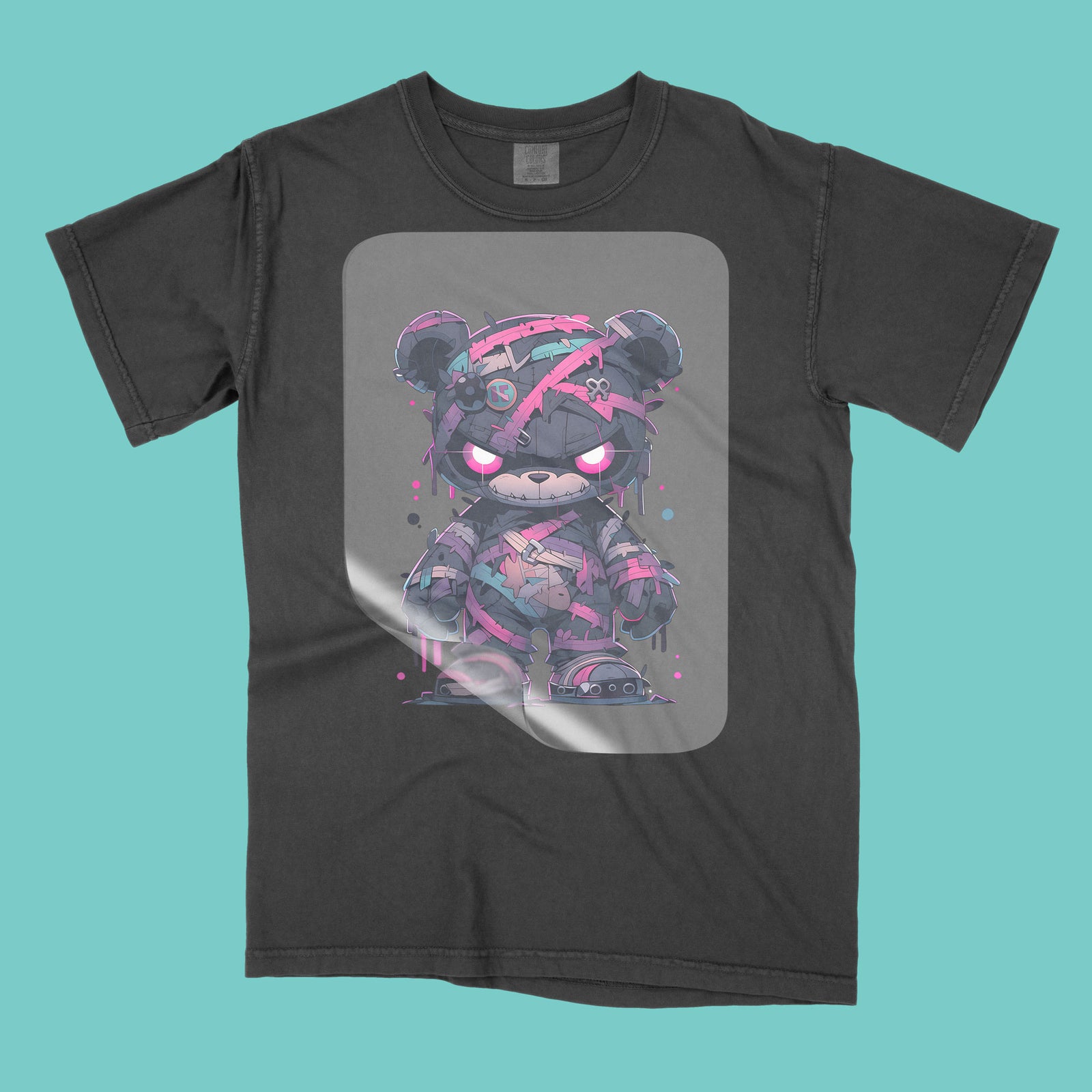

• Slowly peel away top carrier film.
• Check for complete transfer and re-press if needed.

6. Finishing

• Perform any post-processing steps like trimming, contour cutting or sealing.
• Apply edge sealing on some porous materials.
• Add protective coatings if required.

Expert Tips and Tricks for UV DTF Printing

With some experience, you can take your UV DTF printing skills to the next level using these handy tips and tricks from industry experts[5]:

• Test Prints: Perform test prints on sample substrates first to determine ideal print settings.
• Pre-Coating: Use primer or adhesion promoter on the substrate for better ink anchorage.
• Print Resolution: Higher resolution like 1440 or 2880 dpi produces sharper photographic prints.
• White Ink: Print white ink first to allow vibrant colors on transparent, dark or colored substrates.
• Clear Coat: Add a flood clear top coat for enhanced scratch resistance and glossy finish.
• Textured Laminates: Use matte or textured laminating films for customized finish options.
• Cutting: Laser cut prints into precise shapes or create custom decals by contour cutting.
• Overlaminates: Protect outdoor prints by applying UV over-laminates after transfer.
• Post-curing: Use additional UV lamps to further cure prints before application.
• Pre-stretching: Stretch elastic fabrics slightly before transfer to prevent shrinkage.
• Heat Application: Use heat to adhere transfers to fabrics like nylon that are difficult to adhere to.

Troubleshooting Common UV DTF Printing Issues

Despite the best practices, you may encounter some problems while UV DTF printing. Here are some common issues and ways to resolve them[6]:

Problem: Ink smudging or scratching off from substrate.

Solution: Ensure inks are fully cured. Use higher UV lamp power or lower print speeds.

Problem: Poor ink adhesion or print lifting from substrate.

Solution: Clean substrate properly before printing. Use adhesion promoters.

Problem: Blurry or streaked prints.

Solution: Clean printheads, adjust resolution, reduce print speeds.

Problem: Colors looking different from screen.

Solution: Calibrate printer, adjust color profiles and ink limits.

Problem: Film jamming during printing or laminating.

Solution: Check for debris or blocking, clean rollers, adjust film tension.

Problem: Bubbles or wrinkles when laminating over print.

Solution: Ensure proper drying before laminating, use laminator tension controls.

Problem: Laminate not adhering to print.

Solution: Clean print properly before laminating, increase laminating temperature.

Key Substrates for UV DTF Printing

One of the biggest advantages of UV DTF printing is the wide range of substrates that can be printed on using the film transfer method[7]. Some of the most popular materials include:

• Glass: Windows, mirrors, tabletops, drinkware.
• Metals: Aluminum, steel, tin, copper, brass.
• Wood: Natural and engineered wood, MDF boards, plywood.
• Plastics: Acrylics, PET, polycarbonate, PVC boards, polystyrene.
• Ceramics: Tiles, pottery, porcelain, terracotta.
• Leather: Natural and faux leather, leatherette.
• Textiles: Cotton, polyester, nylon, spandex, canvas.
• Magnets: Flexible magnetic sheets, whiteboards, magnetic receptive surfaces.
• Electronics: Phone cases, laptops, gaming consoles, appliances.
• Automotive: Cars, helmets, motorcycles, boats.

Applications of UV DTF Printing

The versatility of the UV DTF process allows it to be used across a diverse range of applications[8]:

• Signage: Windows, retail displays, trade show graphics, decorative signs.
• Packaging: Prototypes, boxes, bottles, tubes, industrial containers.
• Labels: Warning and safety labels, branding and marketing labels, product labels.
• Decals: Custom decals for cars, motorcycles, boats, windows, walls.
• Personalization: Custom prints on gadgets, helmets, skateboards, furniture.
• Promotional: Branded merchandise like mugs, bags, awards, trophies, keychains.
• Apparel: T-shirts, jerseys, hats, jackets, athletic wear.
• Accessories: Phone cases, laptop skins, watch straps, wallets.
• Home Décor: Murals, vases, tabletops, mirrors, shower doors.
• Outdoor: Vehicle wraps, storefronts, signs, gas pumps, billboards.

Getting Started with UV DTF Printing

Here are some recommendations for those looking to get started with UV DTF printing:

• Training: Get hands-on training from experienced UV DTF technicians to learn proper techniques.
• Equipment: Invest in a feature-rich UV DTF printer and laminator suited for rigid and flexible substrates.
• Films: Use films specifically designed for UV DTF printing based on application needs.
• Inks: Use high-performance UV DTF inks with strong adhesion and flexibility.
• Software: Ensure printer software has tools for managing color, optimizing prints etc.
• Testing: Conduct test prints with different films, inks and substrates to determine ideal combinations.
• Maintenance: Follow manufacturer maintenance guidelines for printheads, UV lamps, films etc.
• Support: Leverage manufacturer and reseller support for technical guidance and troubleshooting.

The Future of UV DTF Printing

UV DTF printing has immense potential for continued growth and adoption across industries given its versatility, print quality and efficiency. Some expected trends include[9]:

• Adoption by mainstream printing and signage companies due to lower costs.
• Use for short-run packaging and prototype development.
• Printing on wider range of exotic and specialty substrates.
• Leveraging for multi-layered prints and special effects.
• Innovation in UV inks and films to expand applications.
• Integration with other processes like die-cutting, embossing, foil stamping.
• Enhanced automation and workflow software for added productivity.
• Growing popularity for printing promotional goods and customized gifts.

Conclusion

UV DTF printing provides unmatched quality, durability and customization abilities across the widest range of materials. With the right equipment, knowledge and techniques, outstanding prints for packaging, signage, displays, apparel and more can be readily achieved. This guide covers everything from the printing process and applications to expert tips and troubleshooting advice to help master this rewarding technology and expand your printing capabilities.
